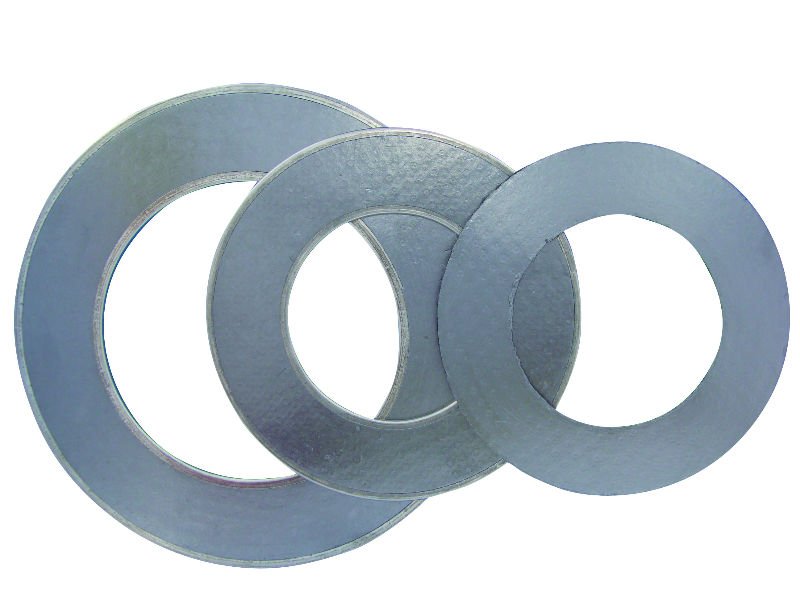

Tanged Metal Reinforced Graphite Gasket

Gaskets made by 98% pure exfoliated graphite reinforced a central layer of 0.1mm thickness tanged stainless steel. The graphite is compressed without the use of adhesives.

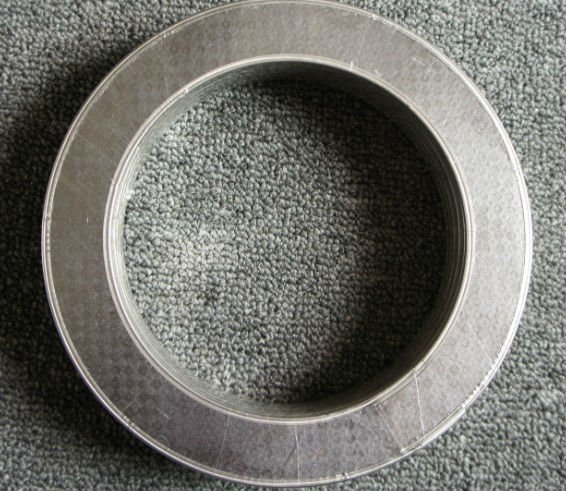

Graphite Gasket Reinforced with Tanged metal insertion
Item no.: RGS1010

* Tough and versatile composite for high pressures.
* Strong composite construction without adhesives.
* Extra strength for ease of handing and fitting.
* With or without eyelets.

Prime Features
* Exceptional resistance to blow-out and crushing.
* Tough and versatile composite for high pressures.
* Strong composite construction with or without eyelets.

Specification
> Density: 1.0g/cm3
> Compressibility (ASTM F36A): 15~35%
> Recovery (ASTM F36A): >/= 20%
> Pressure: 200bar
> Temperature: -240~+550 oC
> PH: 0~14

Dimension
ASME B 16.21, DIN2690, And according to your requirements.
