Pure PTFE Packing
Product number:RGS P101
Quick Overview: Braided from pure PTFE yarn without any lubrication. It is non-contaminating packing.
Send Inquiry
PDF DownLoad
Product Description

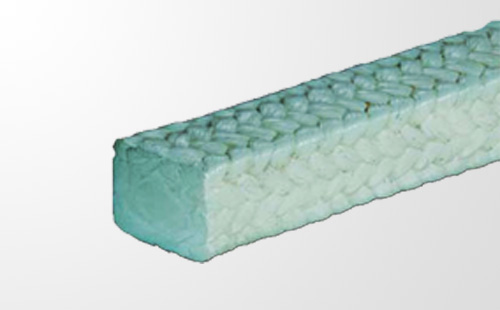

Pure PTFE Packing is braided of Pure PTFE yarn without any lubrication. Designed for valves and lower shaft speed application under medial pressure in food processing, pharmaceuticals, paper mills, fiber plants where high purity and corrosion resistance is required.
Pure PTFE Packing
Item no.: RGSP101
* Clean, non-contaminating and graphite free
* Long maintenance free service life
* Minimal shaft wear and leakage
* Superior performance
Typical Application
* Rotary and reciprocating plant in the food processing, pharmaceutical, special chemicals, and pulp and paper sectors.
* It is particularly recommended for sugar and chocolate processing, and fine paper production.
Technical Data
|
Material |
100% Pure PTFE yarn with Silicone oil |
|
|
Temperature Range |
-150 up to +260 oC |
|
|
Process |
Rotating |
15 bar |
|
Reciprocating |
100 bar |
|
|
Static |
150 bar |
|
|
Shaft Speed |
2 m/s |
|
|
PH |
0~14 |
|
|
Density |
1.3 g/cm3 |
|
