Pure Graphite PTFE Packing with Oil
Product number:RGS P202
Quick Overview: Braided from the Graphite PTFE yarn which with special lubrication, designed for dynamic.
Send Inquiry
PDF DownLoad
Product Description

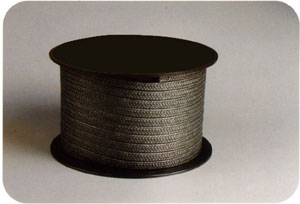

Pure Graphite PTFE Packing with Oil made of 100% graphite PTFE yarn. And re-impregnated with a silicone lubricant. It is a economical graphite PTFE packing.
Pure Graphite PTFE Packing with Oil
Item no.: RGSP202
* Tough and durable
* Self-lubricant, heat and chemical resistant.
Typical Application
* For used in pumps, valves, reciprocating and rotating shafts, mixers and agitators
* Can be safely used in all chemical pump applications with the exception of molten alkali materials, fluoride, fuming nitric acid and other strong oxidizing agents.
* It is against water, steam, petroleum derivatives, vegetable oil and solvents.
Technical Data
|
Material |
100% CGFO Yarn |
|
|
Temperature Range |
-150 up to +280 oC |
|
|
Process |
Rotating |
25 bar |
|
Reciprocating |
100 bar |
|
|
Static |
200 bar |
|
|
Shaft Speed |
16 m/s |
|
|
PH |
0~14 |
|
|
Density |
1.65 g/cm3 |
|
