Flexible Graphite Packing
Product number:RGS P400
Quick Overview: Flexible graphite packing are braided from flexible graphite yarns, which are reinforced by cotton fiber, glass fiber, carbon fiber, etc. It has a very low friction, good thermal and chemical resistance and high elasticity.
Send Inquiry
PDF DownLoad
Product Description
RGSP400K -- Flexible Graphite Packing with Corrosion Inhibitor
Corrosion inhibitor acts as a sacrificial anode to protect the valve stem and the stuffing box.

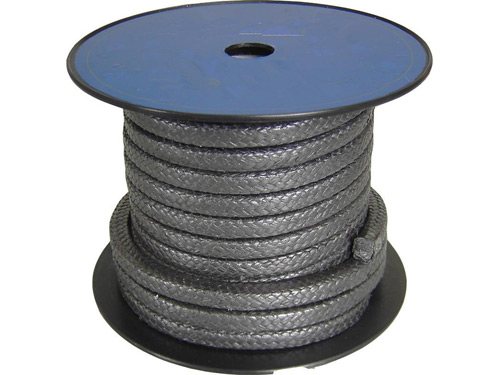

Flexible Graphite Packing
Item no.: RGSP400
Die formed graphite ring are made of expanded graphite without any filler or binders. No special corrosion protection is required. In general, it has square section and has V shaped and wedge shaped section.
Typical Application
* Flexible graphite packing is a multi-service packing capable of a wide variety of uses throughout a plant.
* It can be used in valves, pumps, expansion joints, mixers and agitators in high-pressure and temperature.
* Effective sealing is vital.
Prime Features
* Reinforced with glass fiber: high strength, lower cost
* Reinforced with carbon fiber: less weight loss
* Good thermal and chemical resistance and high elasticity.
Technical Data
|
Material |
100% Expanded Graphite ( Metal mesh) |
|
|
Temperature Range |
-220 up to +555 oC atmosphere; -200 up to +650oC in Steam |
|
|
Process |
Rotating |
3 bar |
|
Reciprocating |
10 bar |
|
|
Static |
20 bar |
|
|
Shaft Speed |
20 m/s in fans |
|
|
PH |
0~14 |
|
|
Density |
1.3~1.5 g/cm3 |
|
