Expanded PTFE Gasket
Product number:RGS1310
Quick Overview: 100% PTFE resistant to all corrosive media. Soft, twistable and bendable, used continue their service and keep its best performance. Excellent anti-wriggle variation ability and cold current resistance. Even in case of cross change of temperature and pressure, good sealing can be assured
Send Inquiry
PDF DownLoad
Product Description

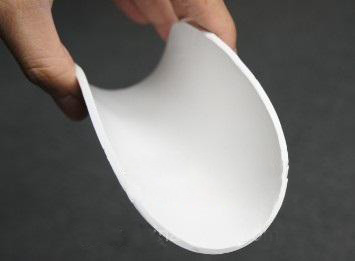

Expanded PTFE Gasket is 100% PTFE, resistant to all corrosive media. Soft, twistable and bendable at will.Excellent anti-wriggle variation ability and cold current resistance, even in case of cross change of temperature and pressure, good sealing can be assured.
|
Item no.:RGS1310 |
Expanded PTFE Gasket * Soft, twistable and bendable, used continue their service and keep its best performance * Excellent anti-wriggle variation ability and cold current resistance * Even in case of cross change of temperature and pressure, good sealing can be assured |
Prime Features
* Easily to be used and replaced
* Wide service scope, it can replace any asbestos gasket, seal-armoured gasket, metallic gaskets, etc
* Diverse pipelines enameled products, glass, rubber products, plastic, non-rusting graphite lining tower, heat-exchanger
* Great interchangeability
* Easy to store and purchase
Application
Chemical manufacturing / Food equipment / Pharmaceutical plants / Petrochemical / Steel manufacturing / Distilling / Food and beverage / Pulp and paper processing / Power generation
Standard
|
Property |
Units |
ASTM Method |
Typical Values |
|
Compressibility |
% |
F-36 |
68 |
|
Recovery |
% |
F-36 |
12 |
|
Seal ability |
Ml/hr |
F-37-B |
0.00(Fuel A)/0.02(Nitrogen) |
|
Creep Relaxation |
% |
F-38 |
32%@212oF/16%@73oF |
|
Temperature Limit |
oF |
|
-450 to +600 |
|
Pressure Limit |
|
|
Full vacuum to 3000 |
