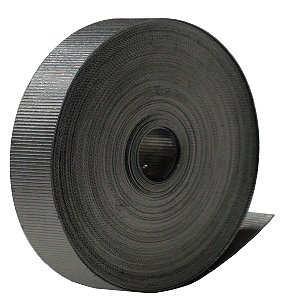

Corrugated Graphite Tape

Corrugated graphite tape with self-adhesive coating, with corrosion inhibitor, are all available on request.

Typical Application
As a endless gasket strip for vessels and flanges of extreme uneven, high temperature and high pressure. Used in Heat exchangers, boiler, pipes, doors, covers, etc.
Coating on both side of cammprofile gaskets.

Prime Features
* Easy handling and installation to every size
* Used as universal gasket during revisions
* Save money and time
* Can be with adhesive on one side.

Specification
Package: 2 kg/roll, other sizes are also available on request
Temperature: -240 up to +550 deg.C under oxidizing environment
-240 up to +3500 deg.C under non-oxidizing environment
PH: 0~14
Max. Pressure: 100 bar ( without wire reinforcement)
200 bar (with wire reinforcement).
