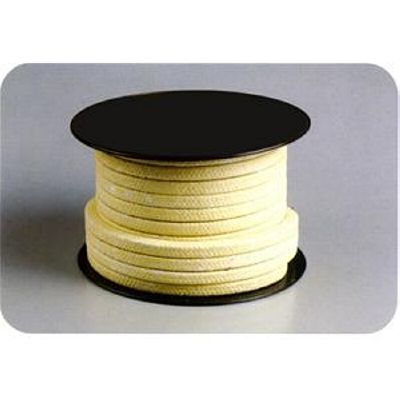

Aramid Fiber Packing
Product number:RGS P301
Quick Overview: Aramid fiber packing braided from high quality Dupont aramid and kevlar fiber with PTFE impregnated and lubricant additive. It is wear resistant but may damage the shaft is not used properly. A minimum shaft hardness of 60HRC is therefore recommended.
Send Inquiry
PDF DownLoad
Product Description
RGSP301L aramid fiber packing with insert lubricant
Without impregnation, an extremely durable, highly abrasive resistant packing. It is an idea for slurry service application.
Aramid Fiber Packing
Item no.: RGSP301
* It is wear resistant but may damage the shaft if not used properly.
* A minimum shaft hardness of 60HRC is therefore recommended.
* Superior performance
* Lower frictional factor
Typical Application
* This is a universal packing which can be used for pumps in all types of industry.
* Chemical, petrochemical, pharmaceutical, food and sugar industries, pulp and paper mills, etc.
* A durable packing able to withstand granular and abrasive applications.
Technical Data
|
Material |
100% Expanded Graphite ( Metal mesh) |
|
|
Temperature Range |
-100 up to +280 oC |
|
|
Process |
Rotating |
25 bar |
|
Reciprocating |
100 bar |
|
|
Static |
250 bar |
|
|
Shaft Speed |
25 m/s |
|
|
PH |
2~12 |
|
|
Density |
Appr. 1.4g/cm3 |
|
